Product Overview
Power transmission belts are a different discipline from conveyor belts, and we run them on dedicated equipment. The range covers classical section belts for general drives, narrow wedge belts where a compact high-power drive is needed, and banded belts for shock loads and long centres.
Tell us the drive power, pulley diameters and speed, and we will size the section and the number of belts rather than simply matching a part number.
Key Advantages
- Classical sections Z, A, B, C, D
- Narrow wedge sections SPZ, SPA, SPB, SPC
- Banded and joined belts for shock loads
- Heat, oil and antistatic compounds available
- Matched sets for multi-belt drives
- Lengths to ISO and RMA designations (Li / Ld / Lw / La)
Technical Specification
| Parameter | Specification |
|---|---|
| Sections | Classical Z / A / B / C / D · Narrow SPZ / SPA / SPB / SPC · Banded |
| Length | 500 – 8000 mm depending on section |
| Temperature range | −30 °C to +80 °C (higher on request) |
| Compounds | Standard · Oil resistant · Heat resistant · Antistatic |
| Construction | Polyester cord, wrapped or raw-edge cogged |
| Standards | ISO 4184 · RMA / MPTA · GB/T 1171 · DIN 2215 |
Typical manufacturing range. Values can be adjusted to your drawing — confirm final specification with our engineers before ordering.
Why This Belt Performs
We calculate the section and belt count from your power, speed and pulleys.
Multi-belt drives supplied as matched sets so load is shared evenly.
Cogged raw-edge belts for small pulleys and higher efficiency.
Low-stretch polyester cord keeps tension stable between re-tensions.
Typical Applications
- Industrial machine drives
- Compressors, pumps and fans
- Agricultural machinery
- Generators and gensets
- HVAC equipment
- Workshop and processing equipment

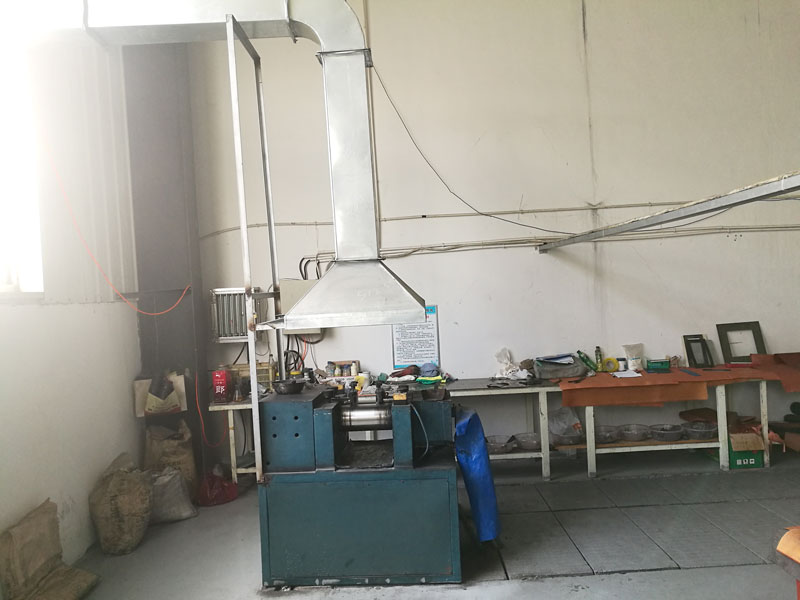

From Our Factory
